Volume control
Ceiling baffles & clouds
In tall rooms the ceiling is too far away to help. Suspended PET baffles put absorbent surface where the sound actually is, and they let services, daylight and structure stay visible.
Overview
Hanging baffles and clouds that take sound out of the vertical plane — and give double-height rooms a ceiling.

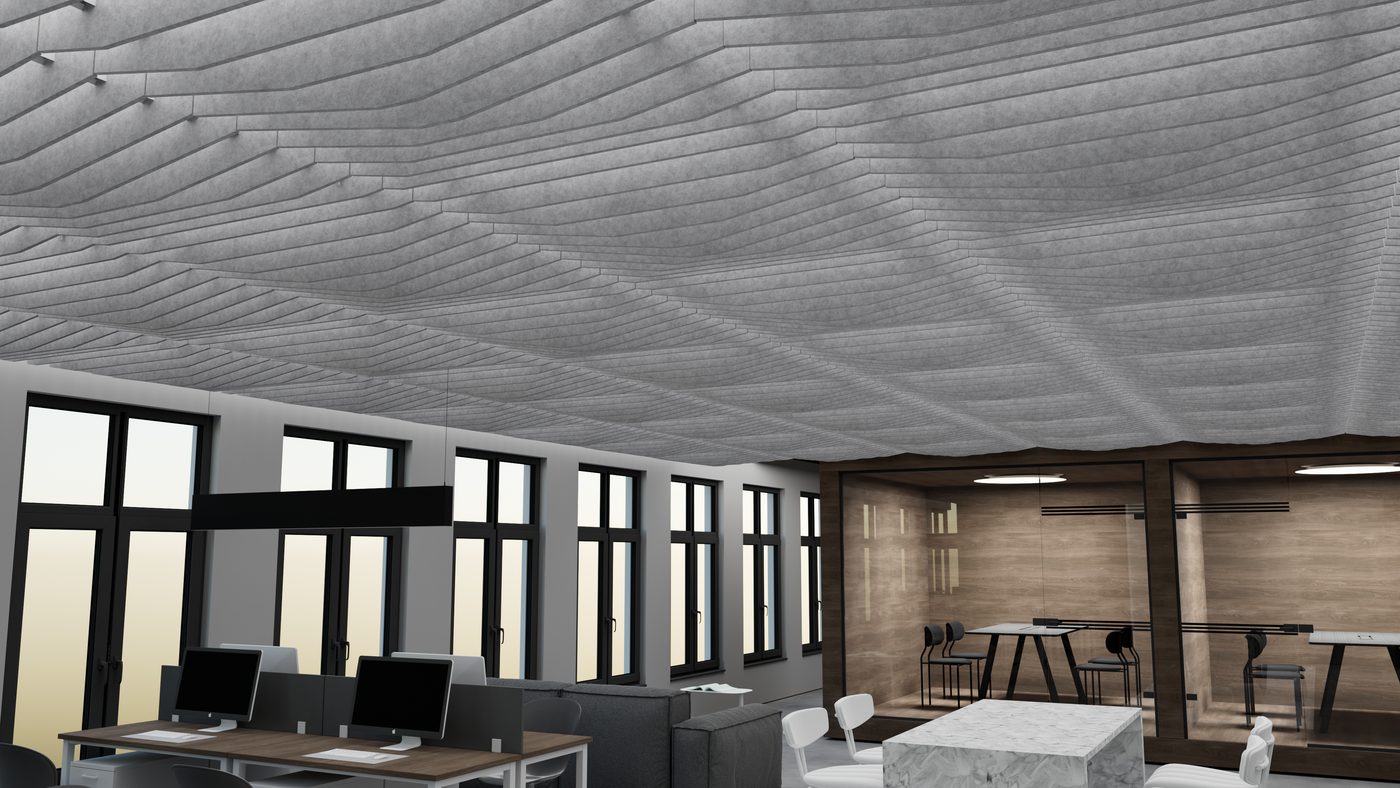

Baffles hang from cables or rails as vertical fins; clouds hang as horizontal panels. Both are cut from 12 mm PET, edged and finished to the same standard as our wall panels, and both can be printed or milled into patterns that read as architecture rather than as acoustic product.
Because PET is light — around 2 kg/m² at 12 mm — suspension loads stay low and existing soffits can often carry the system without new steel. Panels are supplied with adjustable cable kits, and can be arranged in rows, waves, circles or random clouds.
- Low suspension load. Light PET panels reduce demands on the structure and on ceiling grids.
- Two faces absorb. Vertical fins present absorbent faces to both sides of the room.
- Services stay visible. Baffles leave ducts, sprinklers and lighting exposed and accessible.
- Printed or milled. Patterns, wayfinding and graphics can be cut or printed into the panel.
- Shapes beyond the rectangle. Triangular 1200 × 100 × 350, wing 623 × 400, cloud 915 × 792 × 140, and 12 engraved patterns.
- Retrofit-friendly suspension. Cables anchor into the soffit or existing Unistrut; rails and direct fix also available.
| Baffle | 2400 × 1200 × 9 mm · 2700 × 1200 × 9 / 12 mm |
|---|---|
| Engraved ceiling | 1200 × 1200 × 200 / 300 / 400 mm · 9 / 12 / 48 mm |
| Shapes | Rectangular · triangular 1200 × 100 × 350 · wing 623 × 400 · cloud 915 × 792 × 140 |
| Suspension | Adjustable steel cable · rail · direct fix |
| Acoustics | NRC 0.85 (12 mm, ISO 354) |
| Fire | EN 13501-1 Class B · ASTM E84 Class A |
| Colours | 46 standard · 38 fire-rated |
| Range codes | GRS-HA · GRS-DD |
Values are typical for standard production. Project-specific data, test reports and declarations are issued with the quotation.
Details
What makes it work.
Low suspension load
Light PET panels reduce demands on the structure and on ceiling grids.
Two faces absorb
Vertical fins present absorbent faces to both sides of the room.
Services stay visible
Baffles leave ducts, sprinklers and lighting exposed and accessible.
Printed or milled
Patterns, wayfinding and graphics can be cut or printed into the panel.
Shapes beyond the rectangle
Triangular 1200 × 100 × 350, wing 623 × 400, cloud 915 × 792 × 140, and 12 engraved patterns.
Retrofit-friendly suspension
Cables anchor into the soffit or existing Unistrut; rails and direct fix also available.
In situ
undefined in use.
Options
Standard, then adjusted to the project.
Everything below is made to order in our plant. None of it is a catalogue variant with a lead time attached — it is a production instruction.

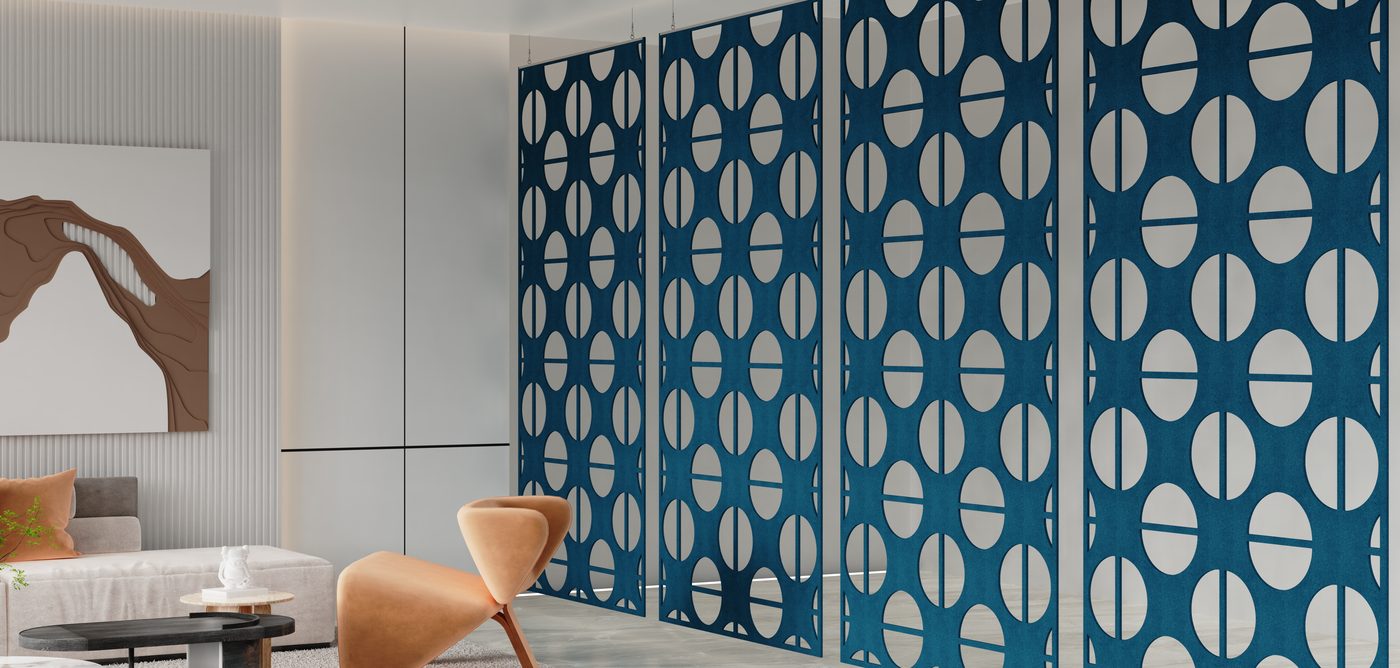

- Wave, circle, hexagon and custom CNC profiles
- Printed graphics on both faces
- Integrated linear lighting
- 12 engraved ceiling patterns, GRS-DD-001–012
- Quick-release cable for service access
